ARF130O

●Open Frame Switching Power Supply
●Universal Input Range 90-264VAC
●125W with Natural Convection
●Ultra Compact Size: 3.59 x 2.15 x 1.36 Inches
●No Load Input Consumption<0.3W
●-30°C to +70°C Wide Range Operation Temperature
●Operating Altitude 5000M
●Active PFC Function
●I/O Isolation 4000VAC
●EMI for Both Class I (with PE) and Class II (without PE) Configuration
●UL / IEC / EN 62368-1 Safety Approvals
●3-Year Product Warranty

上一產(chǎn)品：沒有了

下一產(chǎn)品：AQF240U

產(chǎn)品描述

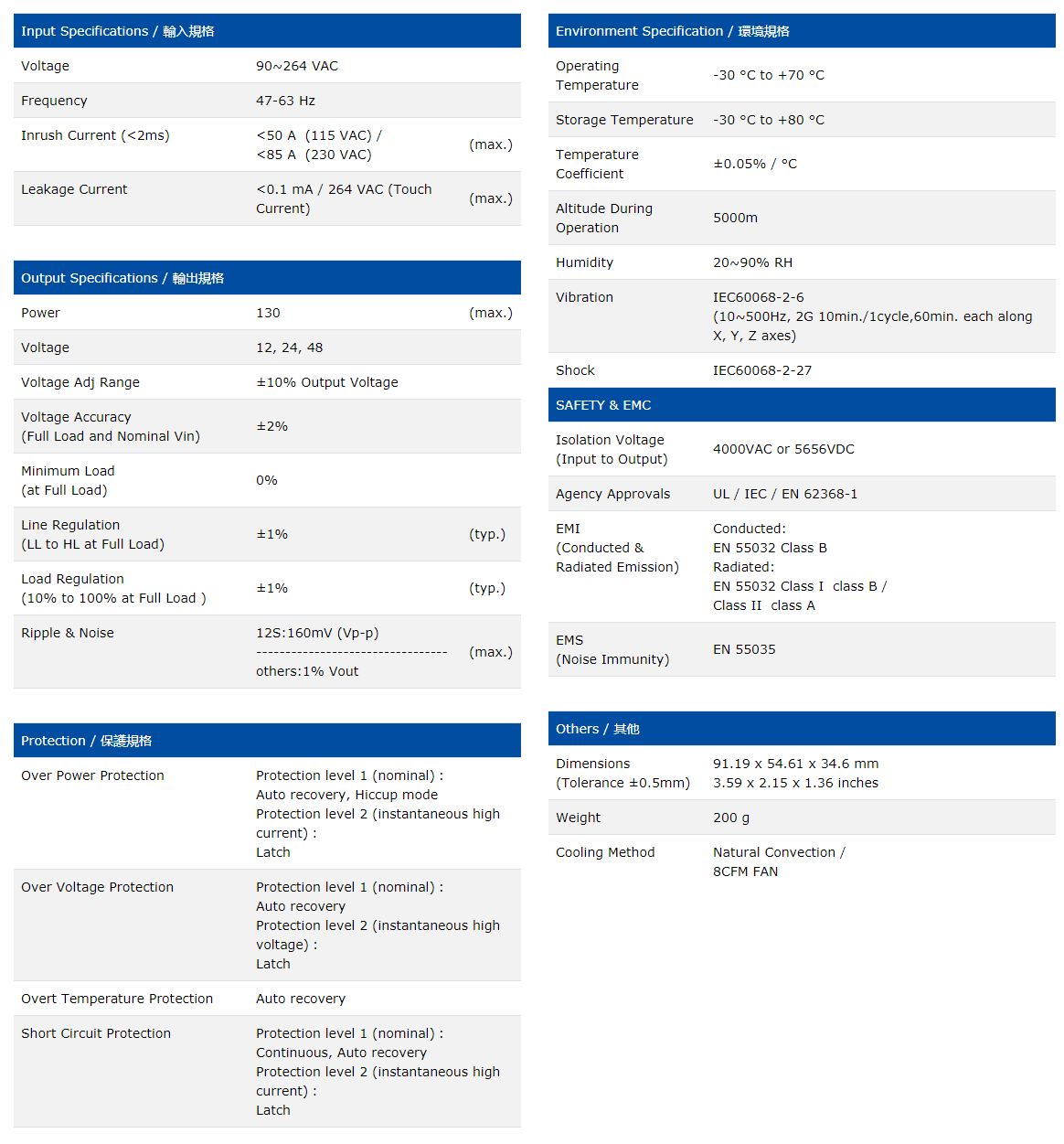

ARF130O Datasheet

●All specifications valid at nominal input voltage,full load and +25°C after warm-up time unless otherwise stated.
●Measured with 0.1U 50V // 47U 50V Ceramic Cap. Cross to output.
●Please refer to the PDF file published on the web site as the final version.
●We reserve the right to make alterations in the product materials and specifications without prior notification and consent to improve reliability, function or design or otherwise.
